MASCOT Hydraulic Power Units

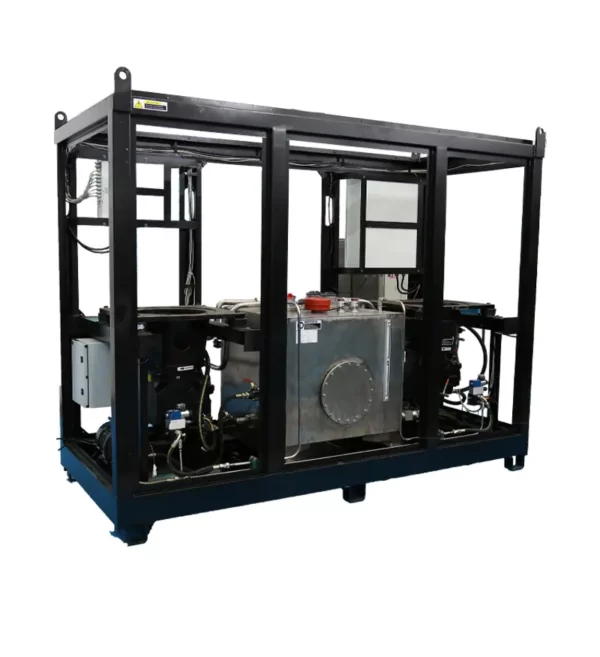

MASCOT drives consist of a complete Hydraulic Drive System and the Power unit with electric motor, pump and tank, the control system, the hydraulic motor and the piping system. The power unit type HPU (Horizontal Power Unit) uses a closed loop hydraulic system to provide a highly dynamic drive system. We have the expertise to custom build hydraulic power units.

MASCOT drives consist of a complete Hydraulic Drive System and the Power unit with electric motor, pump and tank, the control system, the hydraulic motor and the piping system. The power unit type HPU (Horizontal Power Unit) uses a closed loop hydraulic system to provide a highly dynamic drive system. We have the expertise to custom build hydraulic power units.

The structure of the HPU is insulated to reduce noise level while running the system.

Custom built hydraulic powerpack for open loop systems can also be provided on request. These power packs are used mainly in luffing system of stacker cum Reclaimer machines, wagon tippler calipering system.

Our hydraulic reservoir is a unique design. Fully sealed Stainless Steel Hydraulic reservoir is mandatory for all our hydraulic systems. Pipe Fittings for return line connections are welded above the surface of the tank to eliminate the possibility of water or dust entry during cleaning.

Filters used in our systems are rated for higher capacity ensuring the thorough filtration of hydraulic oil before it enters the hydraulic reservoir, irrespective of the variations in the flow. The tank mounted design allows for easy maintenance and elimination of hydraulic fluid wastage during maintenance / replacement.

Safety accessories such as oil level indicators, temperature sensors, pressure switches, pressure transducers and shut off valve limit switches are compactly built without compromising on quality.

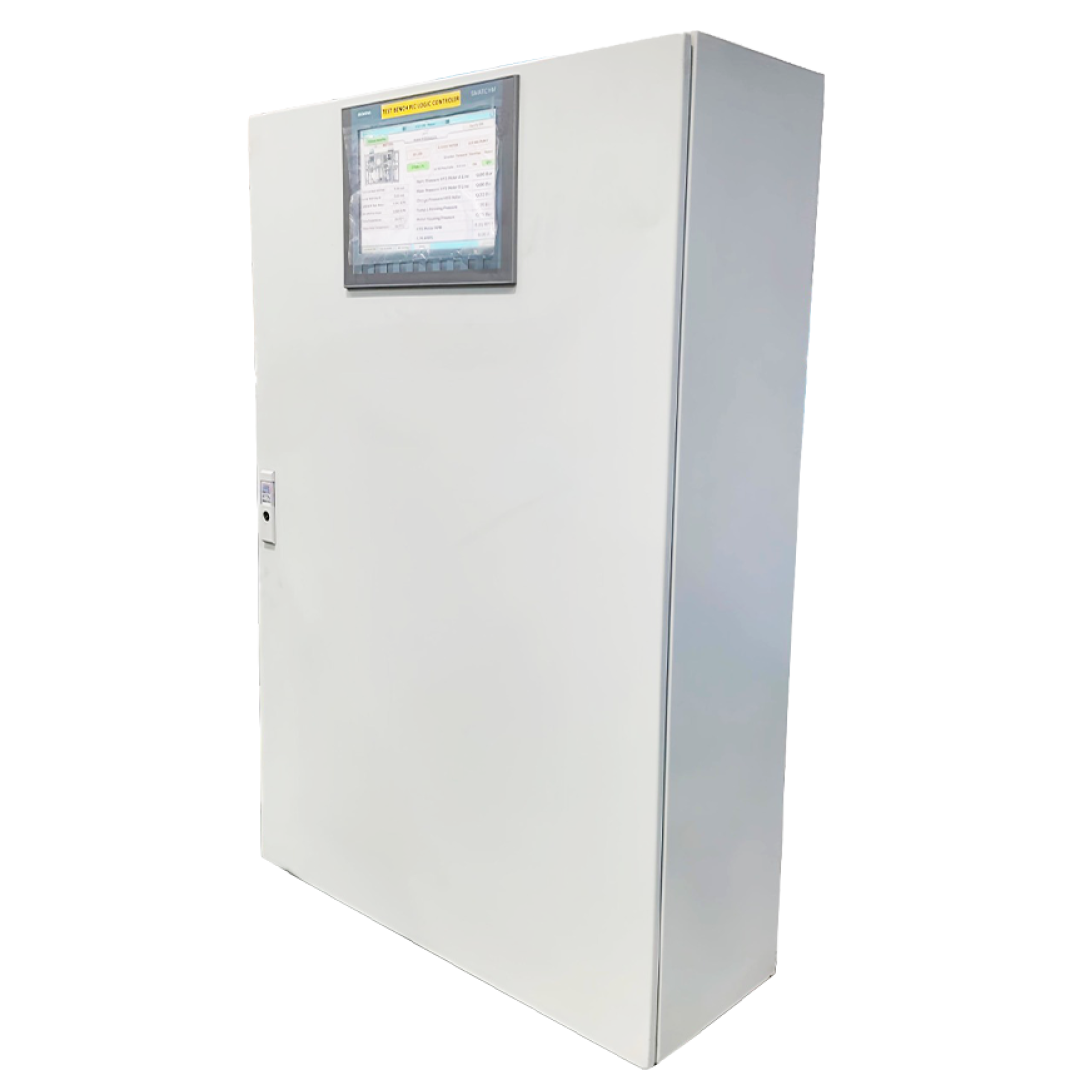

Our PLC controlled monitoring system is user-friendly, unlike other micro controlled monitoring system. The settings can be modified without stopping the systems, thereby enabling flexible operations. Touch Screen HDMI provides clarity during operations, is easy to handle and more than two years data can be stored.
